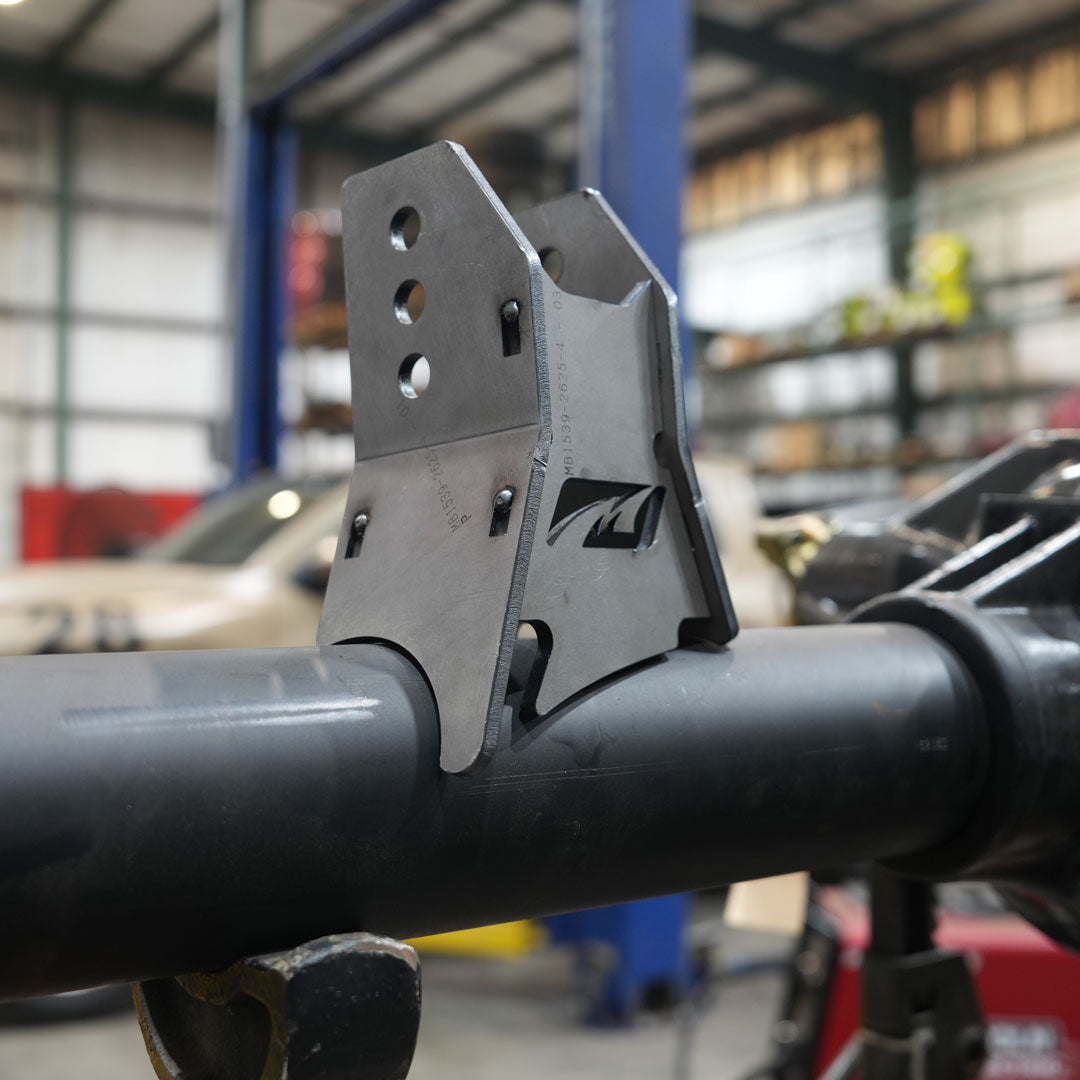

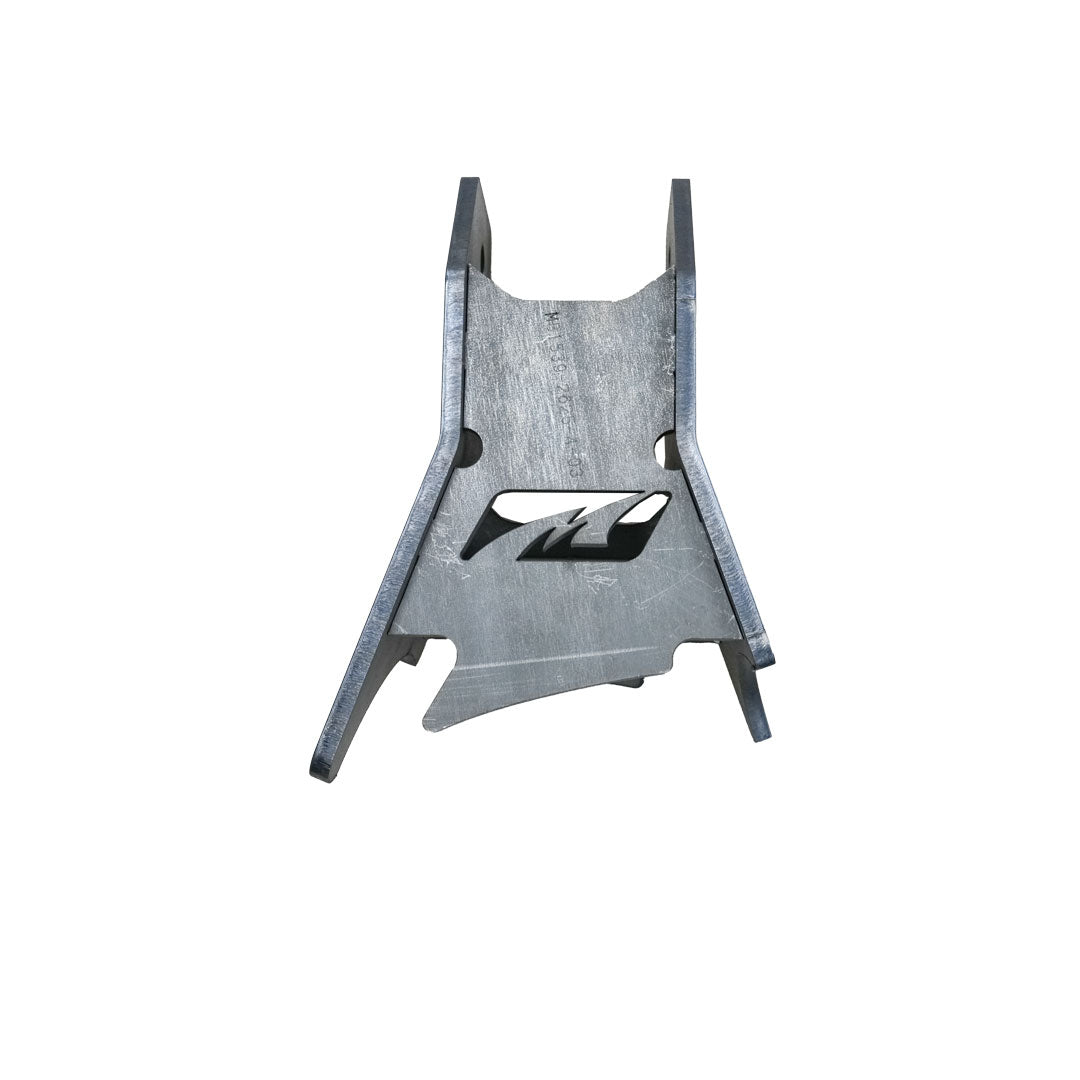

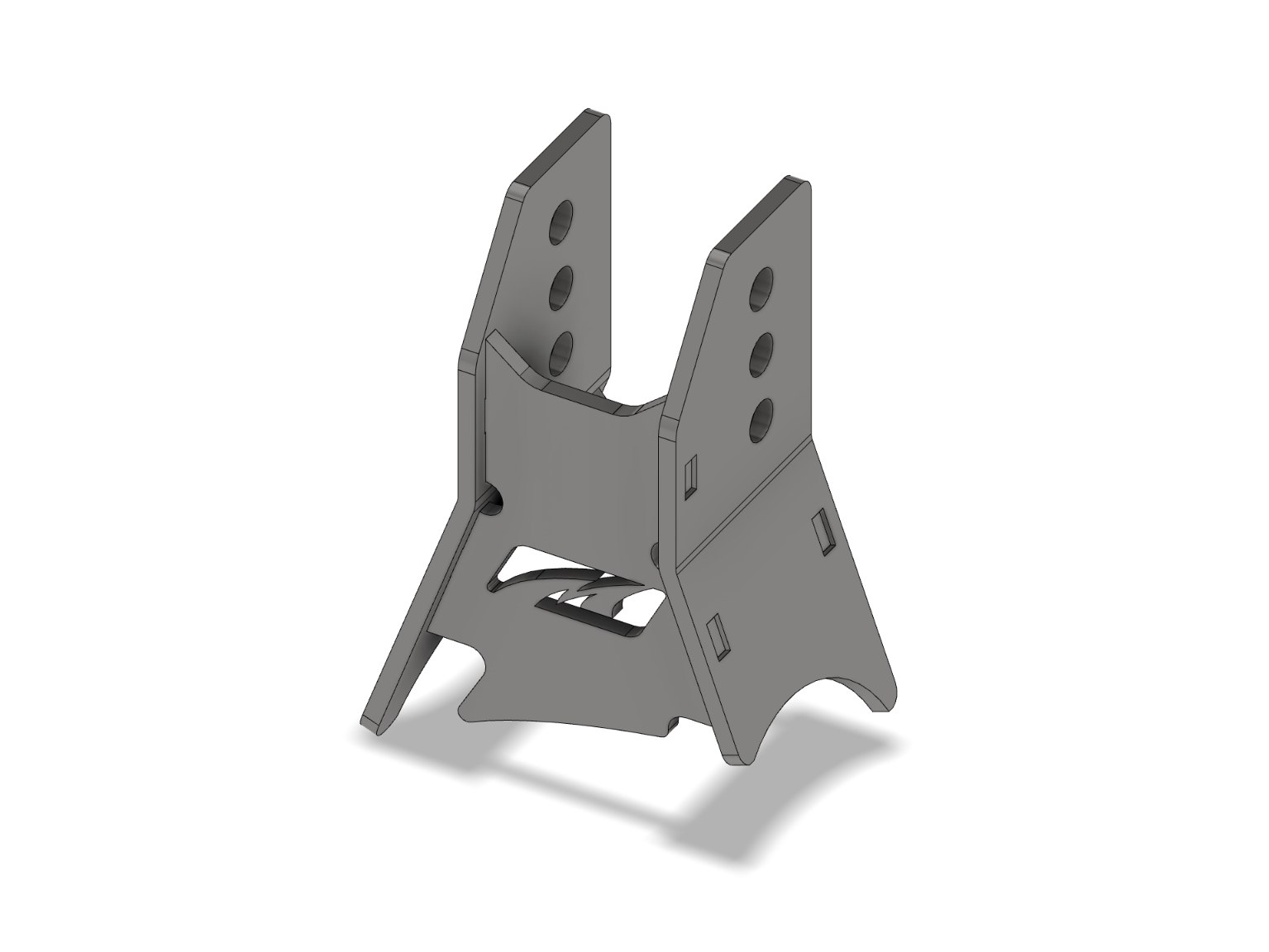

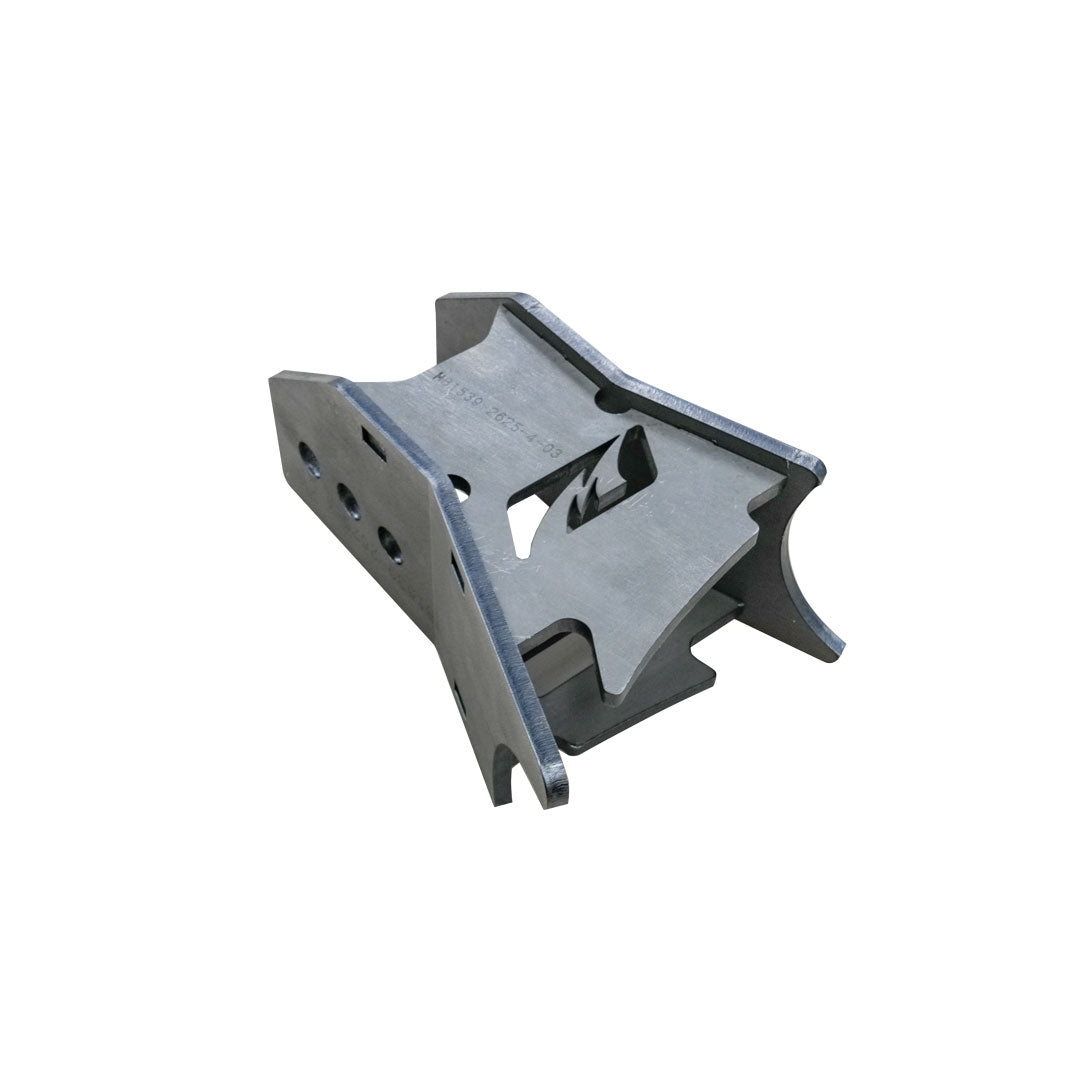

Upgrade your suspension setup with the Motobilt Adjustable Front Upper Link Bracket (passenger side) designed for serious fabricators and off-road builders. Engineered for strength and precision, this bracket is built from 1/4 inch steel and features a 15 degree angled design, perfect for custom link setups where ideal geometry and articulation matter most.

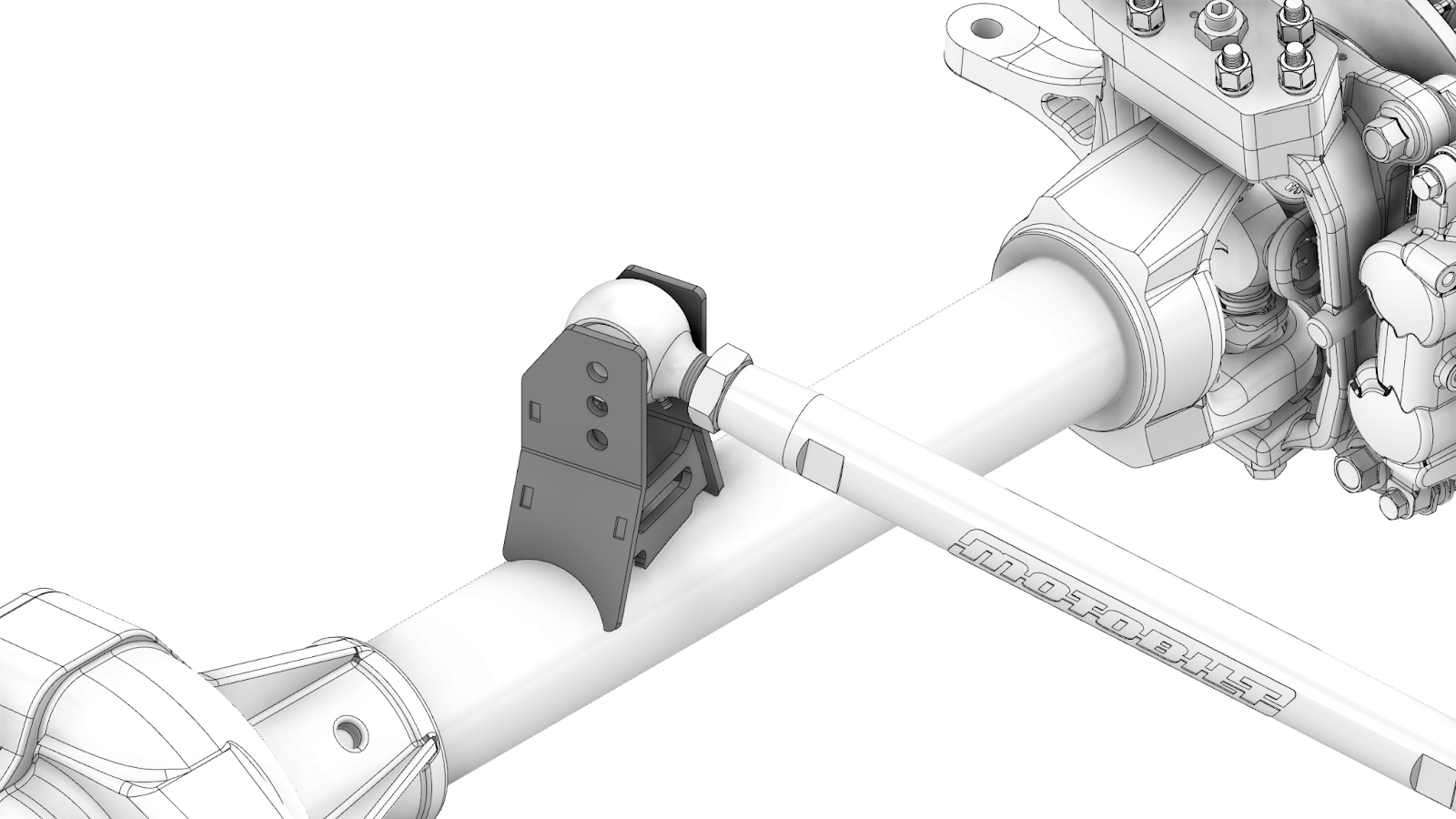

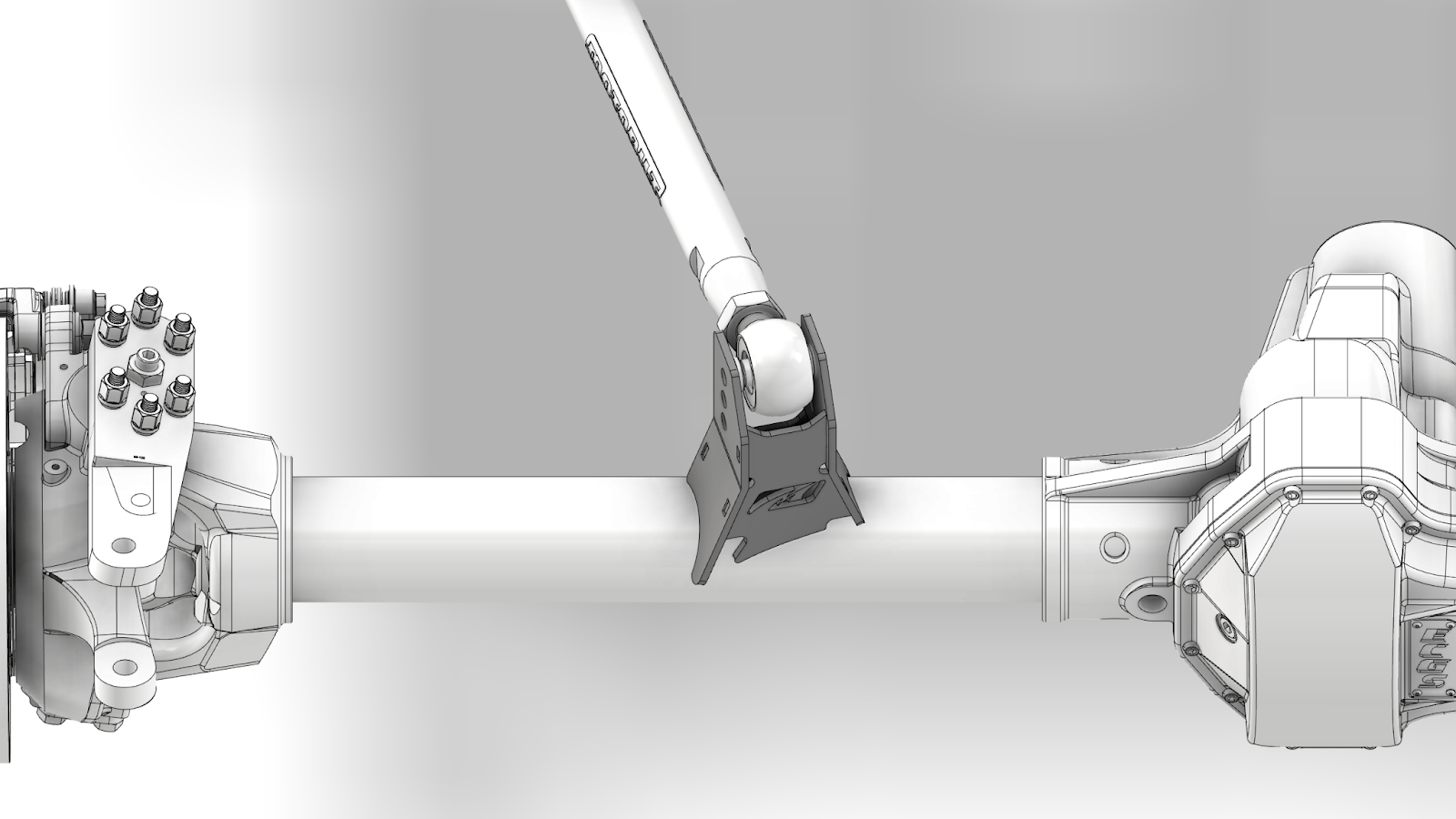

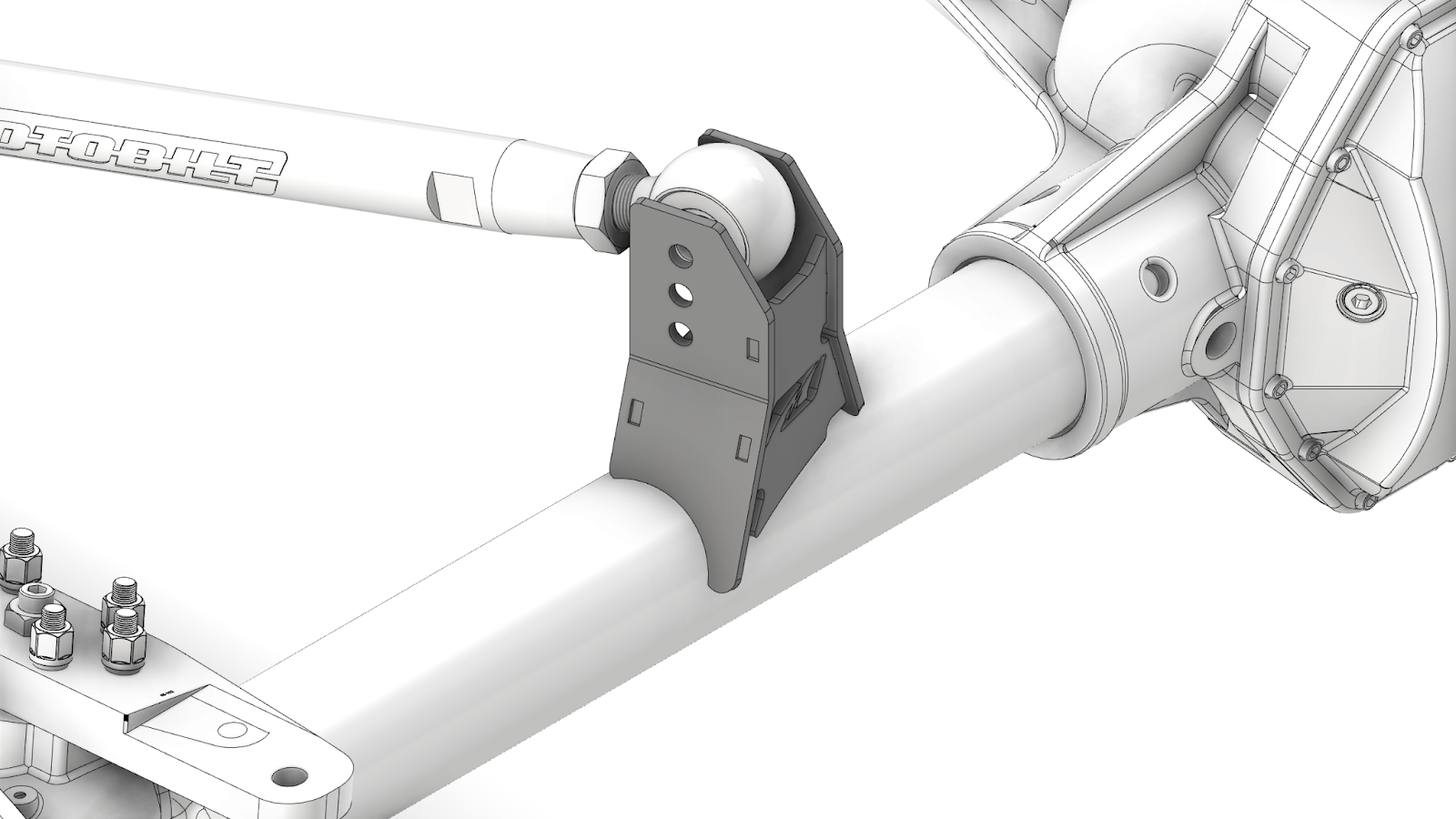

Designed to fit a 4 inch axle tube, the bracket offers a 2 5/8 inch inside width with a 9/16 inch bolt hole, ready to pair with common rod ends or flex joints used in high-performance suspension systems. The multiple mounting holes allows for fine-tuning link vertical separation (1 inch spacing), ensuring your suspension cycles smoothly while maintaining proper pinion and driveshaft alignment on the trail.

Like all Motobilt builder components, this link bracket is laser cut, CNC formed, and proudly made in the USA for precision, consistency, and unmatched durability.

Features:

• 15 Degree Angled Adjustable Front Passenger Upper Link Bracket
• Fits 4 inch Axle Tube
• 2 5/8 inch Inside Width for 9/16 inch Bolts
• Laser Cut and CNC Formed from 1/4 inch Steel
• Adjustable for Precise Link Geometry
• Made in the USA

Notes:

• Ships raw steel and will require welding during installation.
• Professional fabrication and suspension setup recommended.

Specifications:

• Dimensions (H/W/D): 8 inch x 5.9 inch x 3.3 inch
• Weight: 4.5 lbs
