TeraFlex JT: Alpine Long Arms and Long Arm Brackets (Not Included) provide complete alignment adjustability and dependability for maximum performance on JT Gladiator models with 3-6 Inch Lifts.

High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality.

MUST be used with Long Arm Bracket Kit (JT: # 1968000) - Not Included. Can be added to any existing suspension lift.

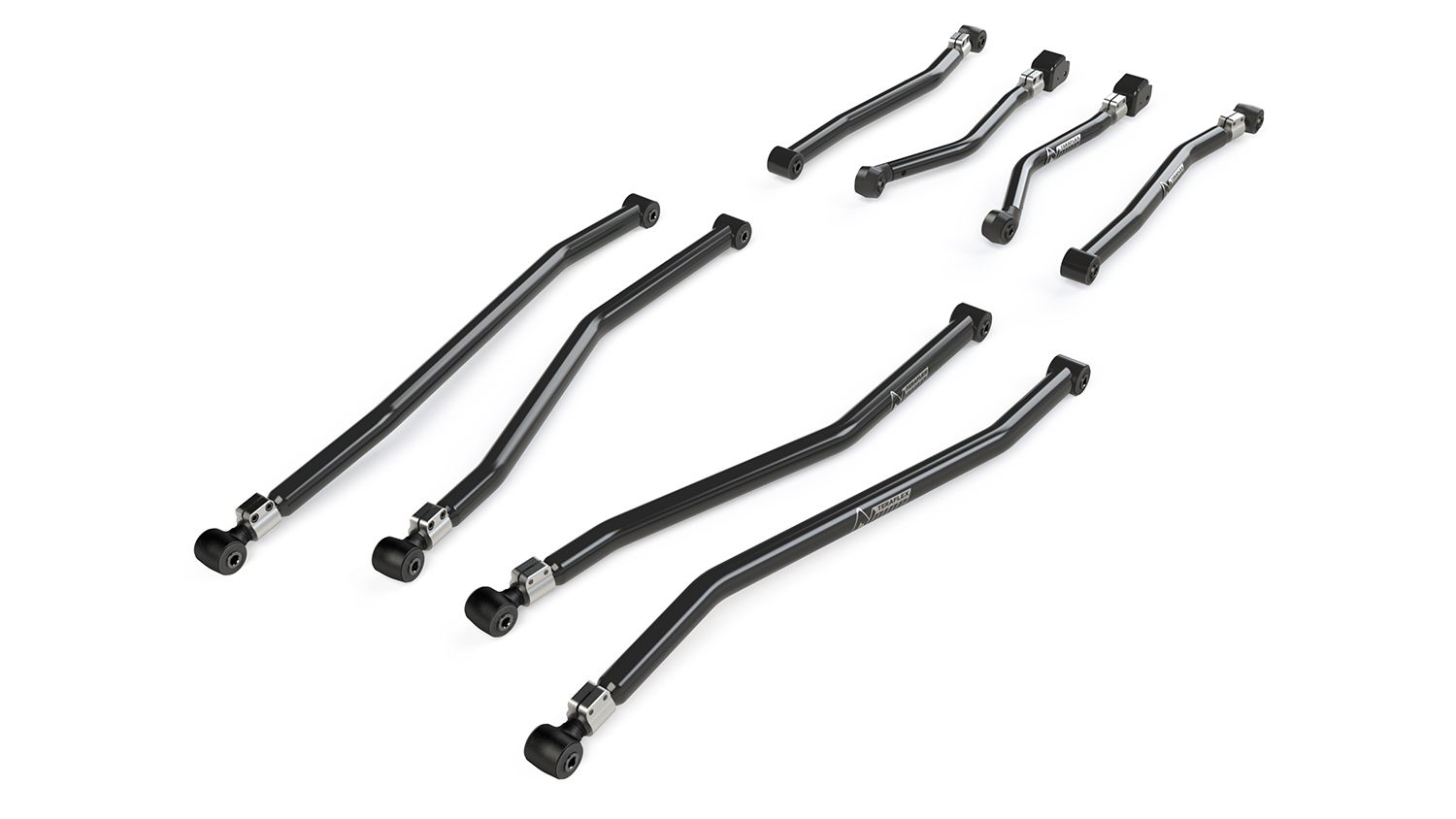

Includes:

• Alpine Long Arm Pairs:
  • Arm Pair - Front Upper (# 1316520)
  • Arm Pair - Front Lower (# 1316500)
  • Arm Pair - Rear Upper (# 1417570)
  • Arm Pair - Rear Lower (# 1417560)

Fitment:

• JT Gladiator (pickup)

Specs:

• Lift Height: 3-6 Inch

Control Arm Specs:

• JL / JT: Alpine Long Arm Pair - Front Upper (# 1316520):
  • Tube Diameter & Wall: 42mm x 4mm
  • Factory Length: 20-1/4 Inch
  • Min. Length: 27-3/4 Inch
  • Max. Length: 28-7/8 Inch
  • Bolt - Axle: 12mm
  • Bolt - Frame: 14mm
  • Bushing - Axle: OEM
  • Bushing - Frame: 611012
• JL / JT: Alpine Long Arm Pair - Front Lower (# 1316500):
  • Tube Diameter & Wall: 50mm x 5mm
  • Factory Length: 24 Inch
  • Min. Length: 30-7/8 Inch
  • Max. Length: 32 Inch
  • Bolt - Both: 16mm
  • Bushing - Both: 09-01-201-001
• JT: Alpine Long Arm Pair - Rear Upper (# 1417570):
  • Tube Diameter & Wall: 50mm x 5mm
  • Factory Length: 16-3/8 Inch
  • Min. Length: 43-1/2 Inch
  • Max. Length: 44-5/8 Inch
  • Bolt - Both: 16mm
  • Bushing - Both: 09-01-201-001
• JT: Alpine Long Arm Pair - Rear Lower (# 1417560):
  • Tube Diameter & Wall: 50mm x 5mm
  • Factory Length: 23-3/4 Inch
  • Min. Length: 47-3/4 Inch
  • Max. Length: 49 Inch
  • Bolt - Both: 16mm
  • Bushing - Both: 09-01-201-001
